Cross-section

Teaching Demonstration

The following demonstration shows the teaching procedures of cross-section by using ARGEO Portable.

1. Select a landform from “Preset Terrain ” or use “Terrain Modifying ”function to create a landform. The following example is to draw a cross-section from point A to B in “地圖Map C Preset Terrain”.

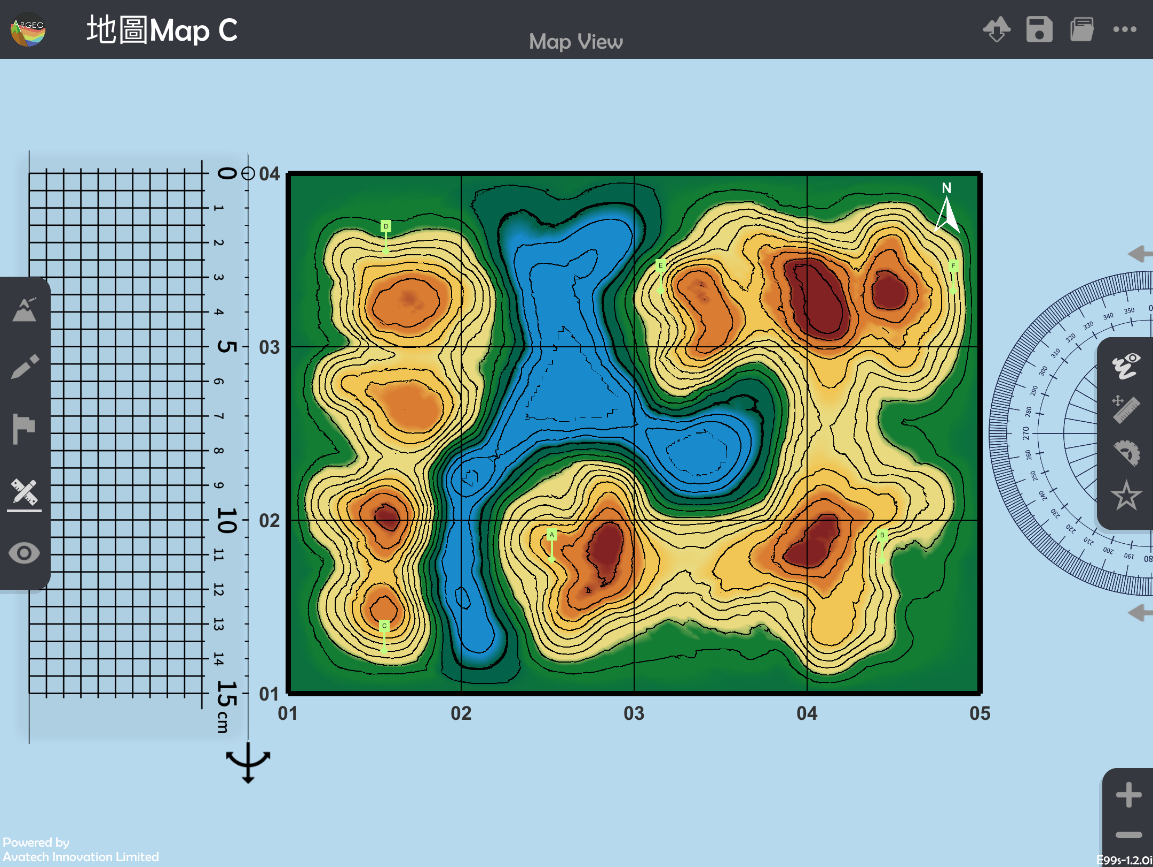

2. Apply “Map View ”.

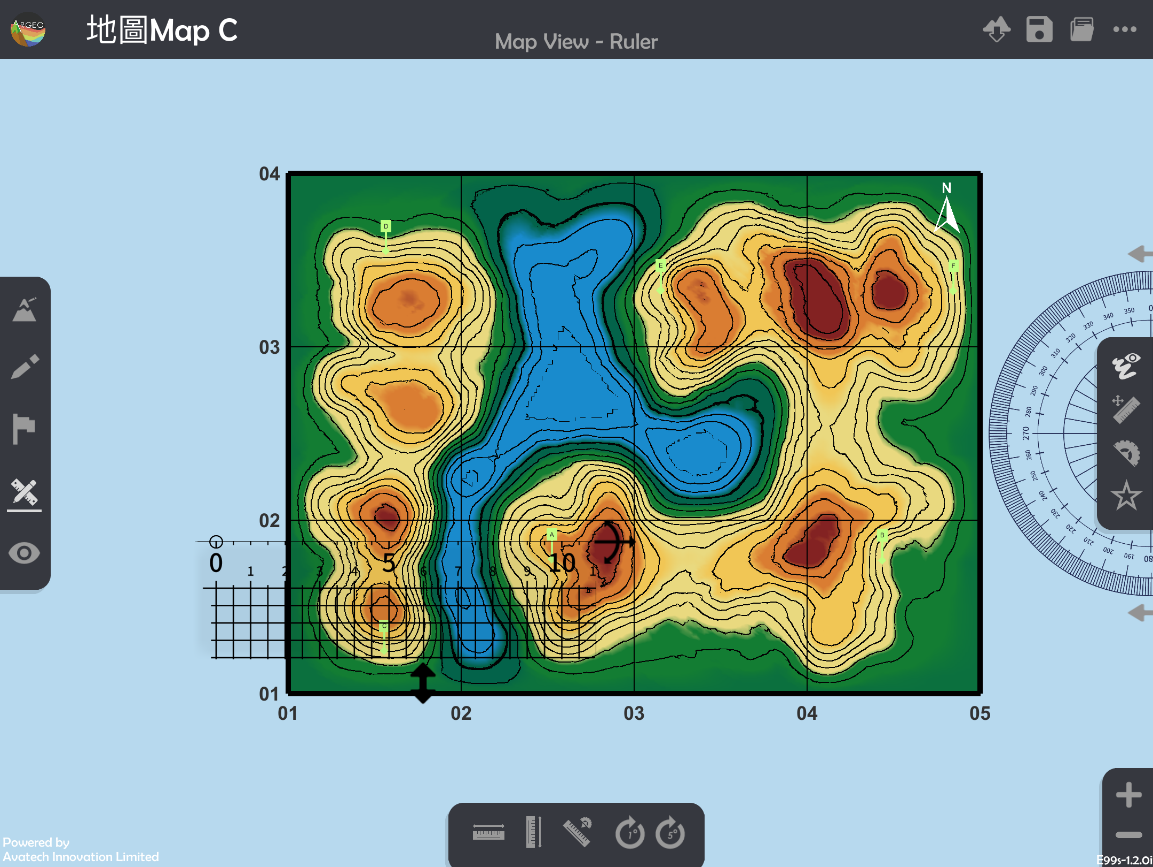

3. Apply “Get Ruler ”.

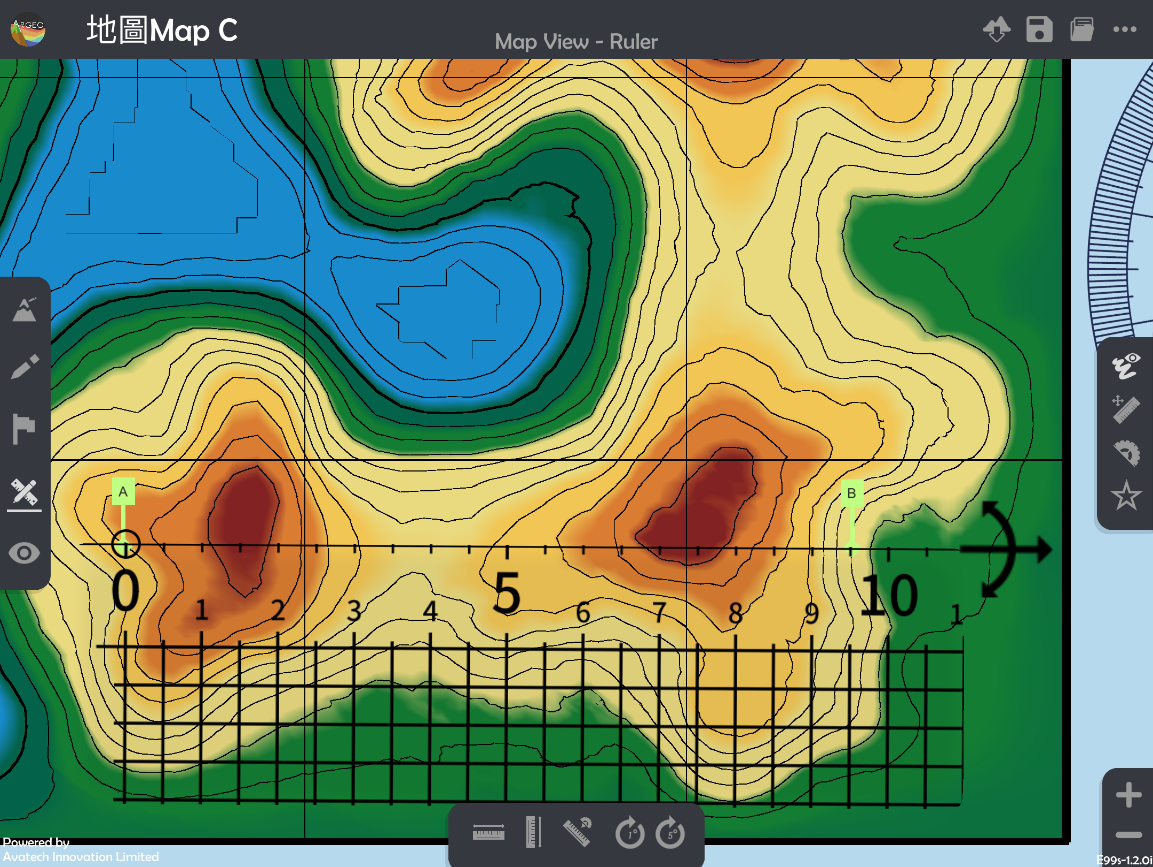

4. Place and adjust the ruler on Point A and B.

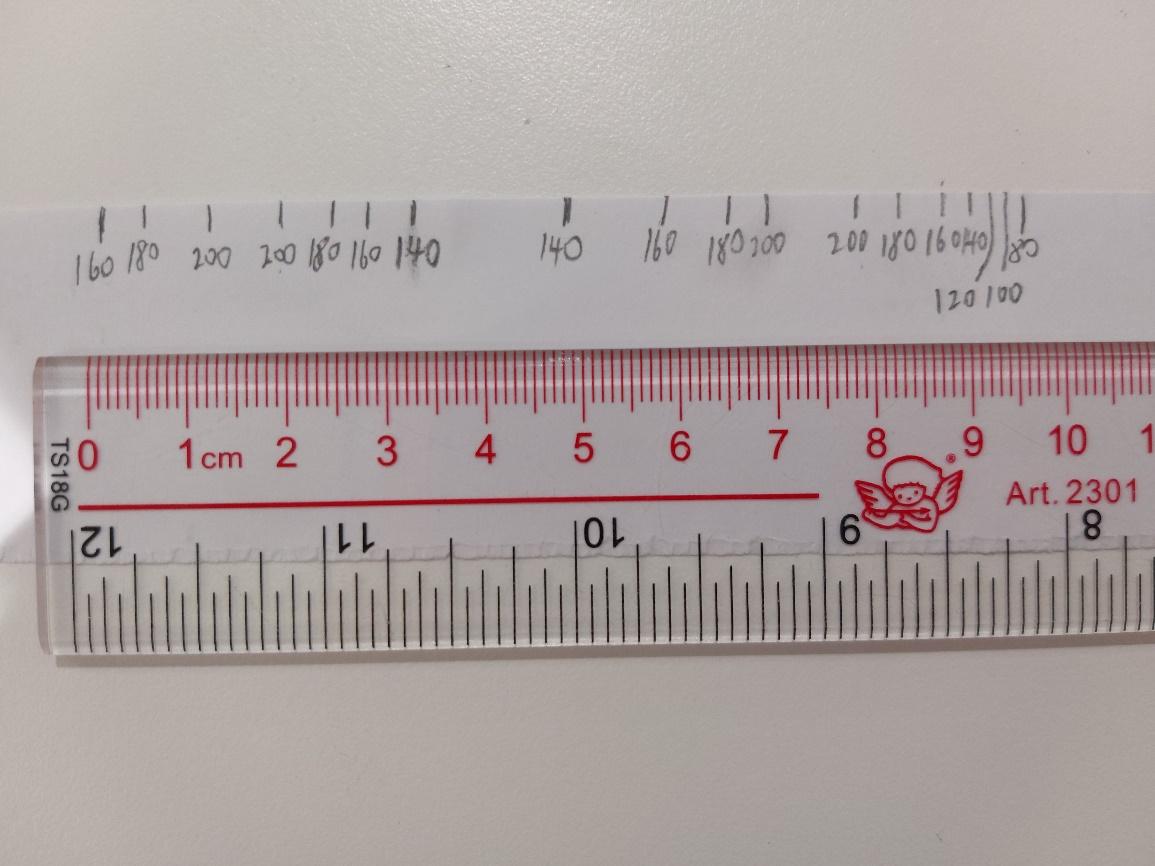

5. Record the height of contour lines across the Point A and B on a piece of paper and ruler in real life.

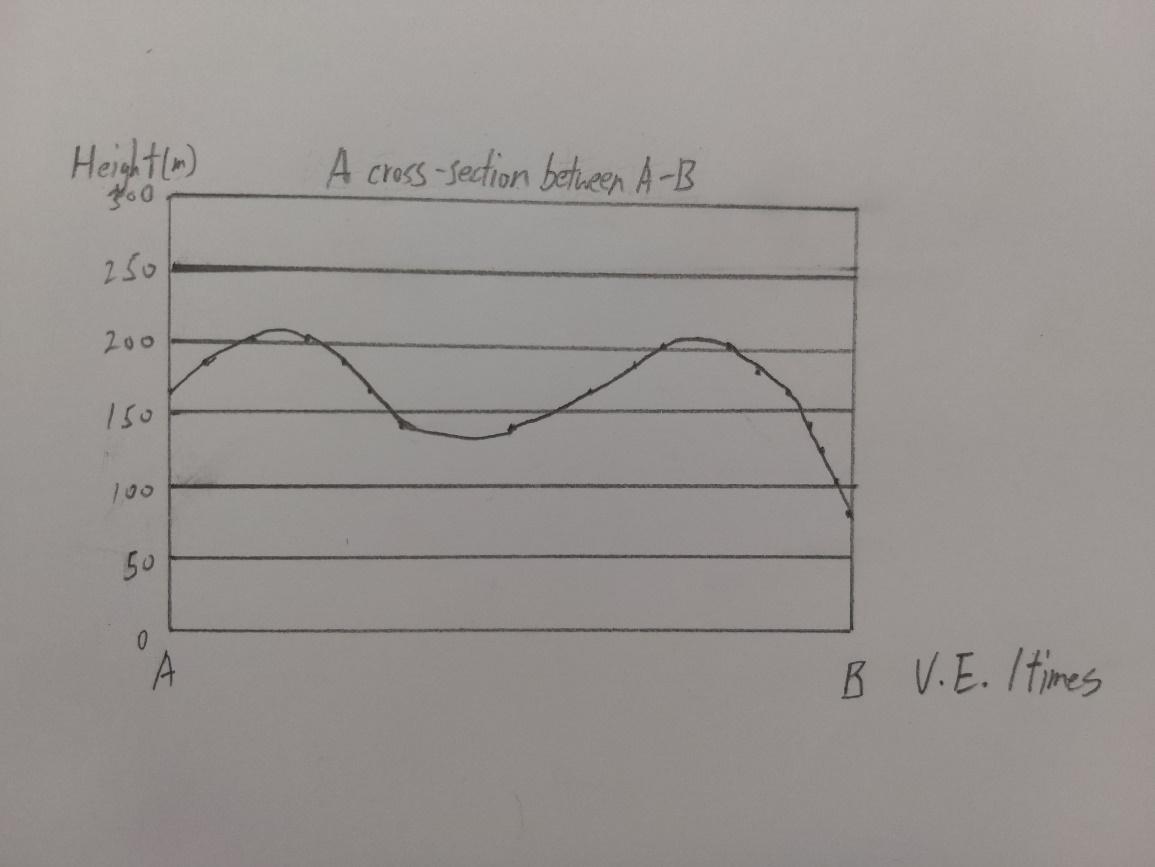

6. Draw the cross-section with the paper which records the height.

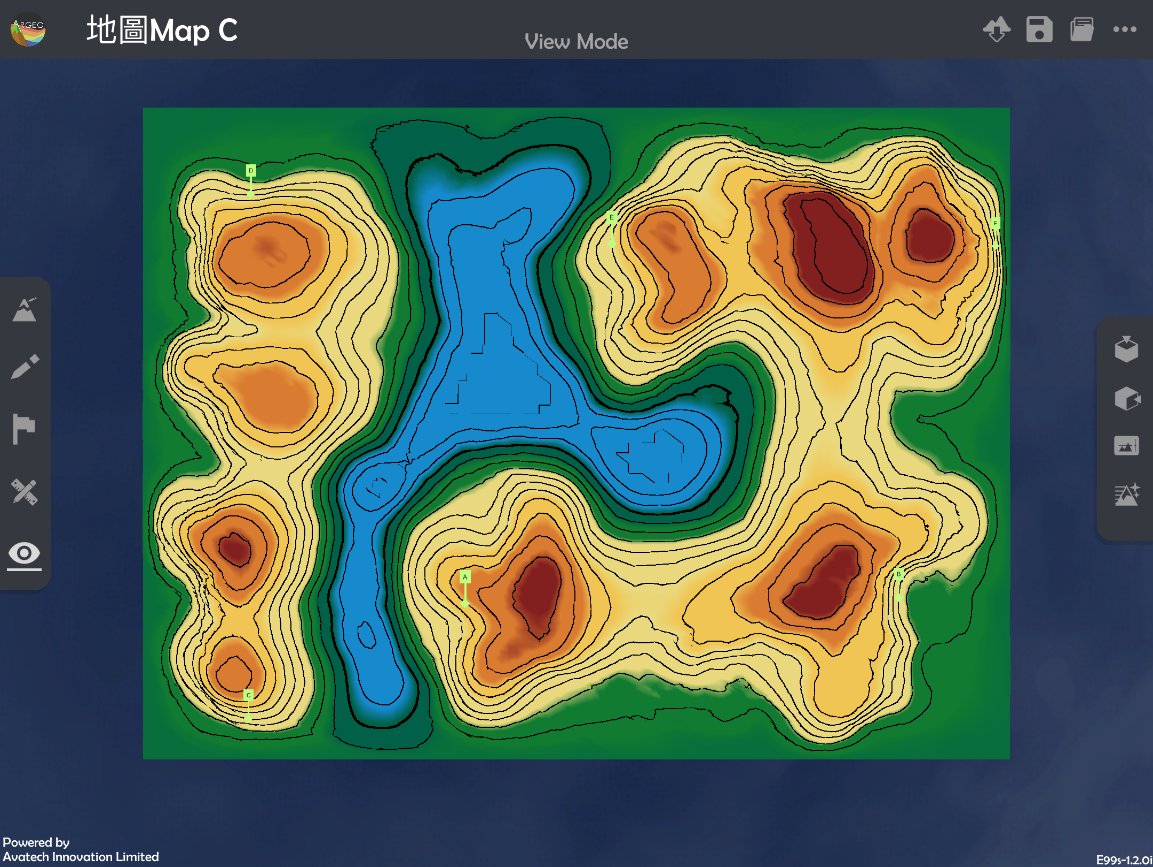

7. Apply “View Mode ”.

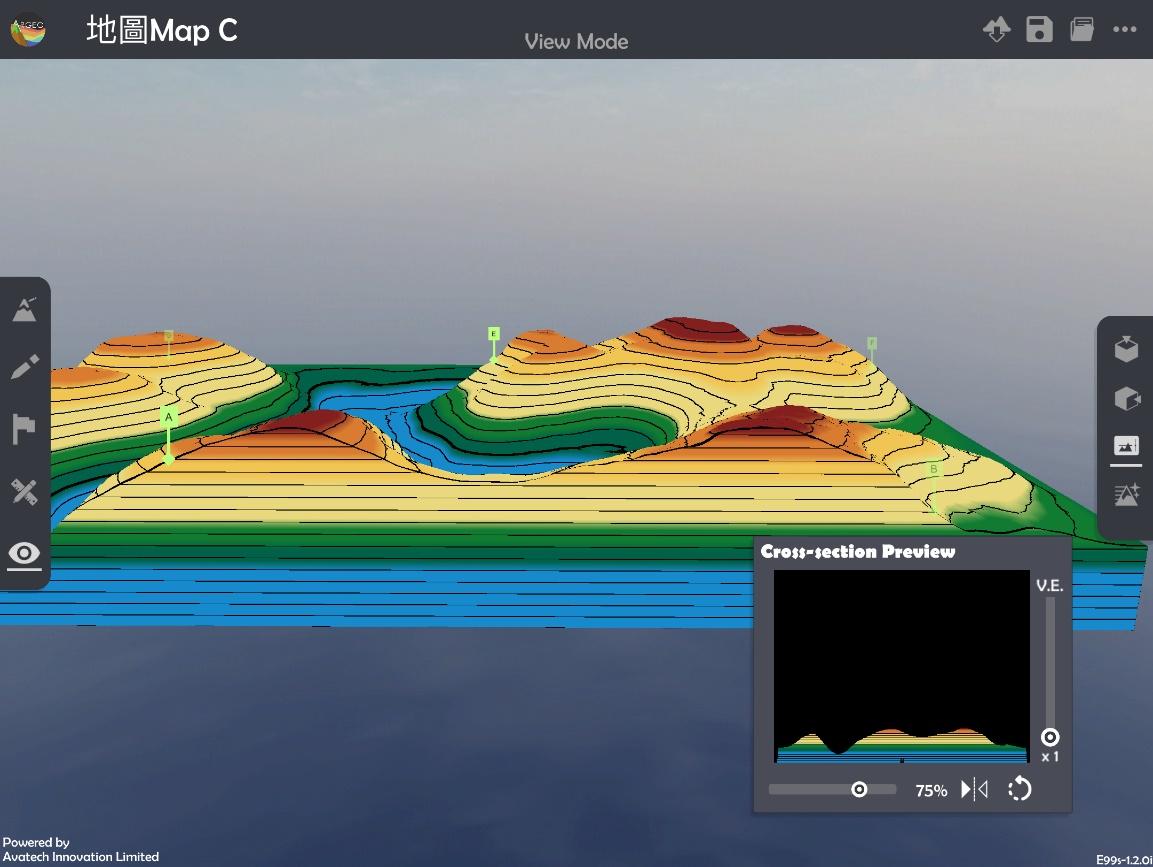

8. Select “Cross-section ” and use the slider to adjuct and position of cross-section and vertical exaggeration to check the cross-section.
